| Place of Origin | CHINA |
| Brand Name | BEITE |
| Certification | CE ISO |
Description

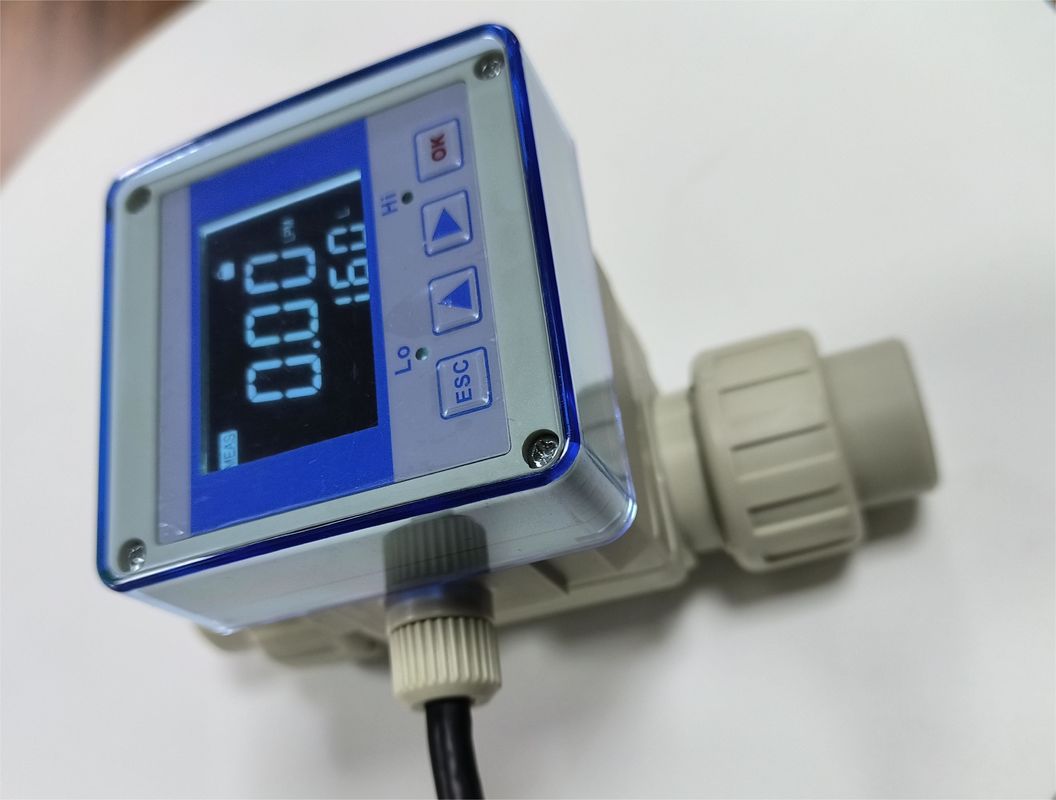

Plastic impeller flow meters are mainly used in the semiconductor industry. It has high precision, small size and all-plastic structure. Strong corrosion resistance
| Measuring fluid | water or chemical fluid |
| measurement accuracy | ±1.0%of F.S.@25℃ |
| maximum flow rate | 10m/s max |
| minimum flow rate | 0.3m/smin |
| work pressure | 5Kg/cm² |
| Flow range | 10:01 |
| Reaction time | real time |
| Material | Main pipe: PP/Impeller: PVDF |
| Operating temperature | <80℃ |
| working environment | -20℃~+80℃;35%~85%RH |
| protection level | IP-65 |
| control output | 4～20mA; RS485; upper and lower limit alarm |
① Instrument display
② Wire
③ Sensor
④ Impeller
⑤ Pipe body
⑥ Pipe connector
Overall structural dimensions
Unit: (mm)
| Pipe diameter | H | L | φD |
| DN15 | 95 | 140 | 40 |
| DN20 | 97 | 150 | 53 |
| DN25 | 102 | 160 | 60 |
| DN40 | 120 | 185 | 83 |
| DN50 | 133 | 197 | 110 |
Correct installation location
Correct Incorrect
Correct Incorrect
Correct Incorrect
Correct Incorrect
Sensor conversion range
| Specifications and models | DN15 | DN20 | DN25 | DN40 | DN50 | ||||||||
| scope(LPM) | 0～10(30) | 0～70 | 0～110 | 0～240 | 0～360 | ||||||||
| Tips | 1) Transmission range: 4.0～20.0mA 2)485 communication protocol: Modbus RTU protocol |
||||||||||||
Modbus Holding register address
| Register address | Numeric type | illustration | |||||||||||
| 1999 | UINT16 | Instantaneous flow rate*100 unit m/h | |||||||||||
| 2000 | UINT16 | The lower 16 bits of cumulative flow rate * 100, unit m | |||||||||||
| 2001 | UINT16 | Accumulated flow rate * 100 high 16 digits unit m³ | |||||||||||
Wiring diagram
Installation Precautions
1) Please ensure that the measuring pipe is full of water level, otherwise it will cause measurement errors.
2)Can be installed horizontally or vertically.
3) When installing the flow sensor, please keep an appropriate length of straight pipe before and after the flow sensor to prevent eddy currents. (The upstream distance must exceed 10 times DN; the downstream distance must exceed 3 times DN)
4) Please install an appropriate filter in front of the flow sensor to prevent foreign matter from damaging the rotor.
5) Do not flush the pipeline after the flow sensor is installed, otherwise the ceramic shaft may be damaged.
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
